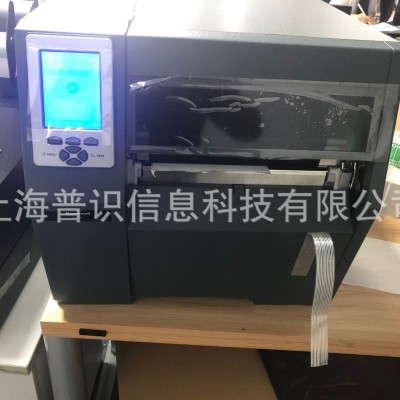

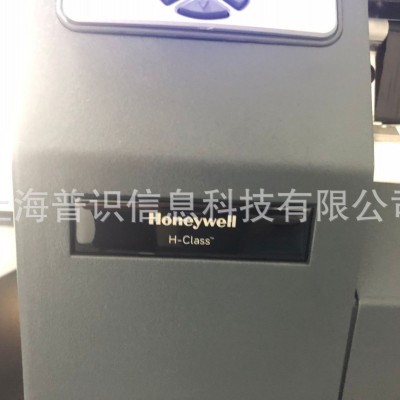

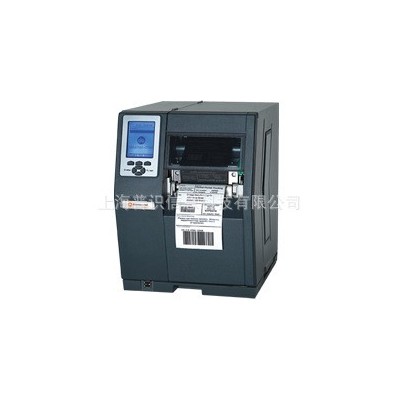

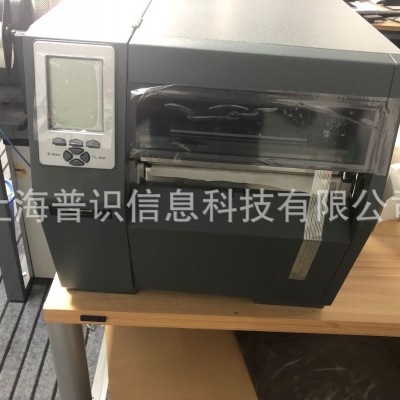

Honeywell DATAMAX H系列工业标签打印机H4212/H4606/H6308/H8308

商品描述

上海普识信息科技有限公司 供应条码标签打印机，条码扫描枪，数据采集器，

手持PDA设备，不干胶标签，印刷标签，电子标签，条码打印碳带
　　若不在线时可以电话联系我 ：15821077233  毛杰
　　固话：021-69929237

　　上海普识信息科技有限公司条形码设备及不干胶标签特殊标签及专业级条码打印碳带供应商

　　上海普识信息科技有限公司为美国斑马  美国艾利 康耐视 霍尼韦尔  摩托罗拉 DATALOGIC德利捷 日本SATO  东芝 西铁城 TSC 博思得 等条码设备中国区代理分销商普识科技致力于条码系统开发和集成的专业技术与主营品牌解决方案供应商

Honeywell DATAMAX 工业级打印机

打印性能

智能。强。很安全。霍尼韦尔工业标签、票据和标签打印机包含从轻型商业需求到坚固耐用、打印各种类型应用。我们的工业打印机凭借其耐用性和可靠性而提供：

• 防错标签

• 可编程

• 网络连接和安全

• RFID 和无衬线技术

H-Class 高性能工业打印机

概述

H-Class 系列打印机配备 4、6 和 8 英寸型号，打印分辨率为 203、300、400 和 600 dpi。H-Class 结合质量功能、使其在表现打印机市场占据地位。它们是为大批量和分辨率标签应用程序而设计。H-Class 打印机具有易于维护的模块化功能和现场可安装选项，因此在生产率分类的打印机领域表现出色。

灵活连接

采用以太网、并口、串行和 USB 标准。选件包括无线 802.11b/g、GPIO 辅助卡等。

结构坚固

具有齿轮驱动设计和耐用的压铸铝框架。清晰的侧窗口可让您轻松监控介质供应水平。

用户友好型显示器

大型 240 x 320 图形 LCD 显示器更易于导航和收集数据。

5 种语言可供选择

多语言菜单包含英文、西班牙文、德文、意大利文和法文。

多种兼容性

支持内碳或外碳碳带，无需购买任何选件，也无需重新配置，更易于碳带库存管理。

易于升级

现场可安装切割器、卷式 & 传感器、无线网卡和 203.2 mm (8 in) 内部自充电卷绕，有助于快速安装。

还可打印 RFID

支持 UHF 和 HF RFID 配置，满足当前或未来的需求，保护您的打印机投资。

产品详细信息

H 级工业打印机适用于生产、仓库和运输环境中的大容量和分辨率的标签应用。功能、性能和可靠性使 H-Class 成为打印市场上的者。

考虑总拥有成本。

H-Class 的齿轮驱动、无皮带设计可减少成本，为您不间断的运行提供。模块化的结构也增加了最用户生产力的正常运行时间。

H-Class 通过其大型图形显示器，为快速导航也打印机通知提供易于阅读的视图。

规格概览：

• 打印头：热敏和热转印

• 打印机长度范围：6 mm 至 2,539.75 mm（0.25 in 至 99.99 in）；值随打印机配置而异

• 最大打印宽度：216.4 mm (8.52 in)

• 打印速度：

• H-4212: 304 mms (12 ips)

• H-4212: 304 mms (12 ips)

• H-4310: 254 mms (10 ips)

• H-4310x: 254 mms (10 ips)

• H-4408: 203 mms (8 ips)

• H-4606: 152 mms (6 ips)

• H-4606x: 152 mms (6 ips)

• 打印速度（续）：

• H-6210: 254 mms (10 ips)

• H-6308: 203 mms (8 ips)

• H-6212X: 304 mms (12 ips)

• H-6310x: 254 mms (10 ips)

• H-8308x: 203 mms (8ips)

• 通信端口：串行、并行、USB、以太网有线局域网

• 可选无线 802.11b/g 等

Specifications

MECHANICAL

Dimensions (HxWxD):
101.6 mm (4 in) standard: 330 mm x 321 mm x 480 mm (13.0 in x 12.6 in x 18.9 in)
101.6 mm (4 in) X series: 415 mm x 321 mm x 489 mm (16.4 in x 12.6 in x 19.3 in)
152.4 mm (6 in) standard: 330 mm x 381 mm x 480 mm (13.0 in x 15.0 in x 18.9 in)
152.4 mm (6 in) X series: 415 mm x 381 mm x 489 mm (16.4 in x 15.0 in x 19.3 in)
203.2 mm (8 in) X series: 415 mm x 433 mm x 489 mm (16.4 in x 17.0 in x 19.3 in)

Weight:
8.2 kg (40 lbs); 21.4 kg (47 lbs);
24.1 kg (53 lbs); 26.8 kg (59 lbs)

Clock:
On-board real-time clock, LCD backlit graphics display

Construction:
Solid aluminum die cast frame with metal cabinet, clear side window to view monitor media supply levels

ENVIRONMENTAL

Operating Temperature:
0°C to 38°C(32°F to 100°F)

Storage Temperature
-17°C to 60°C (0°F to 140°F)

Humidity:
10% - 95% non-condensing

AGENCY APPROVAL

Contact your Honeywell sales representative forthe most recent list of agency approvals.

POWER SOURCE

Electric:
Auto-sensing 90-132 or 180-264VAC @ 47-63Hz

ACCESSORIES

External Rewinder
Serial Data Cable

PRINT SPECIFICATIONS

Printer Type:
Direct thermal, optional thermal transfer

Print Speed:
H-4212; 304 mms (12 ips), 8 mmps (203 dpi)
H-4408; 203 mms (8 ips), 16 mmps (406 dpi)
H-4310; 254 mms (10 ips), 12 mmps (300 dpi)
H-4606; 152 mms (6 ips), 24 mmps (600 dpi)
H-4212x; 304 mms (12 ips), 8 mmps (203 dpi)
H-4310x; 254 mms (10 ips), 12 mmps (300 dpi)
H-4606x; 152 mms (6 ips), 24 mmps (600 dpi)

Print Length Range:
6 mm (0.25 in) to 2,539.75 mm (99.99 in), (values vary with printer configuration)

MEDIA COMPATIBILITY

Media Types:
Roll-fed: 203.2 mm (8.0 in) max O.D. on a 76.2 mm (3.0 in) core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ticket stock

Minimum Media Length:
Tear-off and rewind modes: 6.4 mm (0.25 in) Peel and cutter modes: 25.4 mm (1.0 in)

Media Width Range:
101.6 mm (4 in) models: 25.4 mm (1.0 in) to 118.1 mm (4.65 in); 152.4 mm (6 in) models: 50.8 mm (2 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3 in) to 228.9 mm (9.0 in)

Media Thickness Range:
0.0635 mm (0.0025in) to 0.254 mm (0.01 in)

Ribbon Width Range:
101.6 mm (4 in) models: 25.4 mm (1.0 in) to 114.3 mm (4.5 in); 152.4 mm (6 in) models: 50.8 mm (2.0 in) to 170.2 mm (6.7 in); 203.2 mm (8 in) models: 76.2 mm (3.0 in) to 228.9 mm (9.0 in)

Media Sensing:
“See through” for liner-backed die-cut labels and tags, reflective sensor for black- mark label media

Label Backfeed:
For use with optional cutter and peel & present

Ribbon Core:
25.4 mm (1.0 in)

Ribbon Length:
600 m (1968 in)

Coated-Side-In and Coated-Side-Out
For optimum print quality and printer performance, use certified Honeywell media supplies

OPTIONS

Font Support GPIO Interface ILPC (Hangul, Simplified Chinese, and Kanji) Internal Rewinder (non-“X” models only) Label Present SensorLarge 240 x 320 Display (non-“X” modelsonly) Linear ScannerMCL EnabledPeel & Present (38 mm/1.5 in min. label length) - Basic or Heavy-Duty Powered Internal Rewinder (“X” models only) RFID-UHF & HFSDIO/USB Host Interface (non-“X” models only) Standard Cutter Thermal Transfer (field or factory installed) Wireless 802.11b/g

COMMUNICATIONS INTERFACE

Communication Ports (Standard):
Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible

Communication Ports (Optional):
USB-Host, SDIO memory slot, wireless 802.11b/g, GPIO applicator card,

Communication Ports (Standard Tall Models) (Same as X-Series):
Serial RS232, parallel bi-directional, ethernet-wired LAN 10/100, USB 2.0 compatible; USB-Host, SDIO memory slot

Communication Ports (Optional Tall Models)(Same as X-Series):
wireless 802.11b/g, GPIO applicator card

WARRANTY

Standard Warranty:
Printer(Covers platen roller, printhead and installed options):
1 year

Printhead(Covers platen roller, printhead and installed options):
1 year or 25,400,000 mm (1,000,000 in), which ever comes first

Extended Warranty:
Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services

SOFTWARE

DMX Config:
Complete printer setup utility DMX NetManager, Embedded Network Web Pages Windows® Drivers - NT, XP, Vista

Universal Printer Command Language:
PL-Z (Zebra), PL-I (Intermec), PL-B (Boca)

SUPPORTED BARCODE SYMBOLOGIES

Memory:
16MB SDRAM/8MB Flash

Barcodes:
Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State;

Resident Fonts:
Ten alphanumeric fonts from 2.5- to 23-point including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®; Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support

Character Sets:
More than 50 resident character sets; Unicode/UTF8 support

Downloadable Font Types:
True-Type, Bitmap

Font Expansion/Rotation:
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°

Graphics Supported:
.pcx, .bmp, .img and ASCII format files

Reversible Field/Mirror Image:
Any font orgraphic field can be printed as a normal or reverse image
