转盘式给袋机直线式给袋机单工位给袋机自动粉末罐装机自动罐装机

商品属性

订货号YQ-ZPGD-001

加工定制是

货号YQ-ZPGD-001

品牌盈庆

型号YQ-ZPGD-001

功率5.5（Kw）

分装容量10-5000g（ml）

充填速度10-60bags/min

充填精度0.5-1.5（%）

装箱容积50（L）

重量150（kg）

包装类型袋

充填类型称重式充填机

适用对象化妆品类,清洁、洗涤用品,本机适用于味精、调味料、洗衣粉、农药、化工、糖等小颗粒物料的自动包装。

适用行业食品,化工,玩具,餐饮,日化,烟酒,医药,五金、机械

售后服务7x24小时

是否跨境出口专供货源否

商品描述

转盘式给袋机 味精调味料洗衣粉农药化工小颗粒物料的自动包装。

简要说明

本机适用于味精、调味料、洗衣粉、农药、化工、糖等小颗粒物料的自动包装。

Product Application

The powder packing machine is suitable for small material,such as crystal monosodium glutamate,seasoningpowder,pesticides,chemicals,sugar,feed and other small material automatic packing.

主要特征

1、操作方便，采用德国西门子先进PLC，配合触摸屏和电控系统，人机界面友好。

2、自动检测功能:无开袋或开袋错误，无灌装，无封口。包装袋可重复使用，避免浪费包装材料和原材料。

3、安全装置:机器在气压异常时停机，加热器断开报警。

4、袋的宽度可由电机调节。按下控制键可调节夹头宽度，操作方便，节省时间。

5、与物料接触部分采用不锈钢材料，符合GMP要求。

Main Features

1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2.Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

4.The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

5.The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

主要参数Main Technical Data

直线式给袋机

简要说明Descriptive abstract

我公司生产的给袋式机型系列采用国际先进技术，源于欧洲经典技术，结合现有的包装技术，合理的设计和稳定的运行，可以包装各种尺寸的自立袋及平袋。配备灵活的加工工位，可自动填充，密封和其他的包装过程。给袋式机型系列是实现经济合理包装的优先选择。

Horizontal pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of stand-up and flat pouches. Equipped with flexible processing unit, it can automatically filling, sealing and do other packing processes. Premade pouch packing series is the most optimum choice to realize economic and reasonable packing.

主要参数Main Technical Data

单工位给袋机

简要说明

全自动小型给袋式包装机适用于预制袋，无论是否有拉链，均可进行给袋、开袋、充填、封口、日期打印，广泛应用于大米、巧克力、奶粉、枣、酱、液、宠物食品、新鲜果蔬等食品或非食品行业。

Automatic mini doypack packing machine is suitable for premade or performed pouches picking-up, opening, filling, sealing and date printing with zip-lock or no zip-lock, It is widely used in food or non food industry such as rice, chocolate, milk powder, dates, paste, liquid, pet food, fresh fruits and vegetables, etc.

主要特征

1、单工位设计，安装维修方便。

2、气动、电气、操作部件采用世界先进名牌部件。

3、自动上袋、开袋、充填、封口功能。

4、可选配打码机、开拉链装置、成品输送机等。

5、与各种其它包装机械配合使用。

6、安全性能联锁保护。

7、食品卫生防尘设计，易清洗。

8、适用于液体、粉末、细颗粒、流动性好的物料。

Main Features

1.Straight single station design, easy in installation and maintation.

2.Adopting advanced world famous brand components in pneumatic parts ,electric partsand operation parts.

3.Auto premade or performed pouch pick-up, open, fill and seal function.

4.Various options are available such as date printer, zip-lock opener, output conveyor, etc.

5.Compatiable working with various weight filler and other packing machine.

6.Interlock protecting for safety performance;

7.Dust-proof design for food hygience and easy-clean.

8.Apply for liquid, powder, fine granules and easy-moving material.

主要参数Main Technical Data

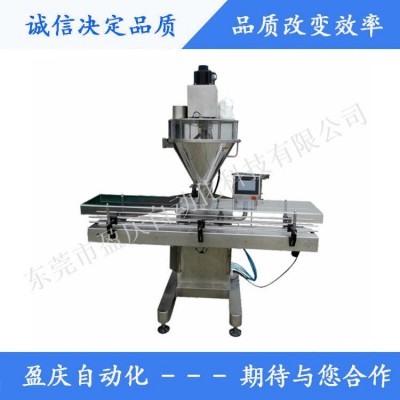

称重式螺杆充填包装机 针对容易扬尘的的超细粉末及高精度包装

简要说明Descriptive Abstract

该机主要针对容易扬尘的的超细粉末及高精度的包装要求而开发设计，根据装在容器下面的重量传感器给出的信号完成双速充填、计量及升降等工作，适用于包装添加剂、碳粉、灭火器干粉、其它超细粉末、及有高精度包装要求的粉末等。

This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement. based on the feedback signal given by below sensor, this machine do measuring, two-filling, and up-down work, etc. It is specially suitable for filling additives, carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy.

主要特征

1、气动夹袋装置和托架装在重量传感器上，根据预先设定的重量进行快速和慢速充填，高反应速度的称重系统，保证高包装精度；

2、伺服马达带动托盘升降，升降速度可任意设定，充填时基本上无粉尘扬出污染环境；

3、伺服马达及伺服驱动控制螺杆，性能稳定、精度高；

4、PLC控制、触摸屏人机界面显示，操作简便；

5、全不锈钢结构；组合式或开启式料箱，清洗十分方便；

6、充填头配有手轮调整高度，轻松实现多种规格包装；

7、 固定式螺杆安装结构，充填时不会影响物料性质；

8、工作流程：人工套袋或人工放罐→容器升高→快速充填，同时容器下降→重量达到预量值→慢速充填→重量达到目标值→人工取出容器；

9、气动夹袋装置和托罐装置可供选择，只需选择不同装置，即可满足罐装和袋装要求；

10、两种工作方式可切换，定量式或实时称重式，定量式速度快，精度稍差，实时称重式，精度高，速度稍慢。

Main Features

1.Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight. Featured with high speed and accuracy weighing system.

3.Servo motor does up-down work driving with tray together, the up down rate can be set randomly, no dust spouts out when filling.

3.With servo motor and servo drive controlled auger, perform stably, and with high accuracy.

4.PLC control, touch screen display, easy to operate.

5.Made of stainless steel, combined hopper or split hopper,easily to be cleaned.

6.With handwheel to adjust the height, easy to many kinds of weight.

7.With fixed screw installation, the material quality won't be effected.

8.Process:put bag/can(container) on the machine→container raise→fast filling, container declines→weight reaches the pre-set number→slow filling→weight reaches the goal number→take the container away manually.

9.Note: the pneumatic bag-clamp equipment and can-hold set isoptional, they are suitable for can of bag filling separately.

10.Two filling modes can be inter-changeable, fill by volume or fill byweight. Fill by volume featured with high speed but low accuracy. Fill by weight featured with high accuracy but low speed.

主要参数 Main Technical Data
