颗粒包装机 固体饮料包装机 药品包装机 中药颗粒包装机
| 加工定制 | 是 | 功能 | 杀菌、干燥,灌装,计量,封口,充填,包装辅助,包装容器成型,打码、喷码,条码识别、打印 | 品牌 | 其他 |
| 型号 | YM-129 | 电压 | 380或220（V） | 功率 | 2.5（Kw） |
| 包装速度 | 80-150（袋/分钟） | 重量 | 400（kg） | 包装材料 | 复合材料 |

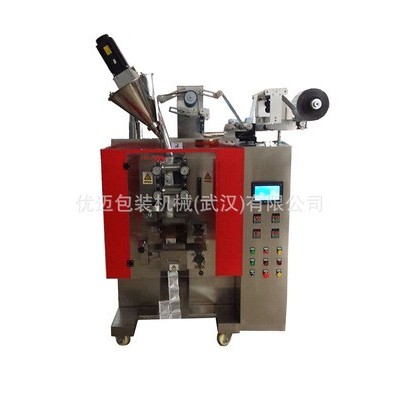

YM-129系列机械是针对颗粒、粉末、片类等物料实现自动包装而设计的两对辊筒的包装机械。该机可以实现三边封口或四边封口的包装。
YM-129 series is two-pair roller type vertical packaging machine designed for automatic packaging of granule, powder, and tablet products with 3-side or 4-side seal packaging.
YM-129系列包装机械的特点：
Main Features
该机有一组纵封热辊筒、一组横封热辊筒装置，封口采用辊筒方式封口、花纹采用完整、连续的棋盘纹。计量装置可有多种方式选择，如计量盘方式、螺杆方式、数粒盘方式。切断刀可以采用平刀、锯齿、点划线三种方式之一。该机还装备有方便开袋的易撕切口装置。
This machine adopts one set of vertical hot roller device and one set of horizontal hot roller device. Roller sealing ensures artistic and neat seal and chessboard pattern is complete and unintermittent. Various filling devices could be chosen, such as Volumetric Cup Filler, Auger Filler and Tablet Counting Filler. There are three types of cutting functions, plain cutting, sawtooth cutting and perforation cutting. This machine also equipped with tear notch for convenient bag opening.
l 该系列包装机采用PLC控制、触摸屏显示运行状态。
l 变频电机驱动纵封机构，实现包装速度在额定范围内无级调节。
l 伺服驱动横封机构，实现制袋长度可以在额定范围内无级调节，制袋长度在触摸屏上进行数字设定，袋长调整简单方便
l 智能型光电色标定位控制系统，具有首袋自动定位功能，能够自动排除由于非正常色标图案及印刷不良的包装材料所造成干扰信号的影响，运行稳定可靠。
l 实现切割切斜的在自动调整功能。解决了传统包装机需要多次停机进行调整及包材的浪费。提高了工作效率及包装的美观。
l PLC control; touchscreen displays running status.
l Vertical sealing unit driven by variable-frequency motor, realize stepless adjustment of packaging speed within rated range.
l Horizontal sealing unit driven by servo motor, realize stepless adjustment of bag length within rated range. The bag length can be set on touchscreen, and length adjustment is easy and convenient.
l Intelligent photocell positioning control system with the function of automatic positioning of first bag. Eliminate the influence of signal disturbing caused by abnormal eye-mark pattern and bad print of film, to ensure stable operation.
l Automatic adjustment function for noneffective cutting, solve the problem of multiple machine-stopping adjustments and waste of film, improving working efficiency and ensure good appearance of bags.
YM-129的技术特点和用途：
Application
颗粒、粉末、片状、丸状食品和药品。
Suitable forfood and pharmaceutical products with granule, powder, tablet, or pellet shape.
技术参数：
Technical Parameters
名称 | 内容 | 备注 |
袋长范围： | 50～180mm | 包装袋长改变较大时需要更换横封滚筒 |
袋宽范围： | 三边封：30～95； 四边封：35～100 | 改变机械包装宽度、需换成型器 |
填充 容量： | 0.5- 100ml | 根据包装量来选择适用的容杯或螺杆等。 |
包装速度： | 30～120包/分 | 依物料和规格不同而定 |
功 率： | 约3kw / AC380V | |
机械尺寸： | 长1200mm宽1000mm高1800mm | |
机械重量： | 约450kg | |
适应包材： | PET/AL/PE 、 PET/PE、 OPP/CPP等 | |
包装材料参数： | 卷膜外径≤400；卷膜内经φ75 | |
标准供料方式： | 计量盘、螺杆、数粒盘装置 | 三选一 |
标准切断方式： | 平刀、锯齿刀、点划线刀 | 三选一 |
可选装置： | 热压印装置、打印机、双切刀装置（双伺服驱动） | 单独定购 |
Item | Specification | Remarks |
Length | 50-180mm | Change horizontal sealing roller if bag length changes too much |
Width | 30-95mm (3-side seal) 35-100mm (4-side seal) | Change Shape forming device when bag width changes |
Filling Capacity | 0.5-100ml | Choose volumetric cup or auger screw as per filling volume |
Packing Speed | 30-120ppm | Subject to product and property |
Power | about 3kw / AC380V | |
Machine Dimension | 1200mm*1000mm*1800mm (L*W*H) | |
Weight | about 450 kg | |
Packaging Film | PET/AL/PE, PET/PE, OPP/CPP | |
Parameters of Film Roll | Outer Diameter≤400； Inner Diameter φ75 | |
Standard Filling Device | Auger Filler, Volumetric Cup Filler,Tablet Counting Filler | Choose one from three |
Standard Cutting Method | PlainCutting, Sawtooth Cutting, Perforation Cutting | Choose one from three |
Optional Device | Thermal printer, Printer, Dual-cutting device (dual servo driving) | Buy separately |
