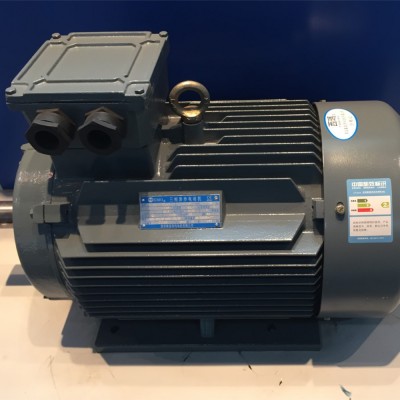

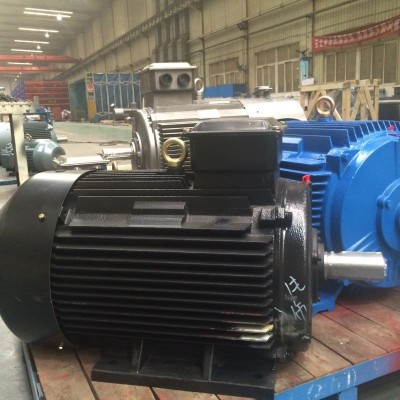

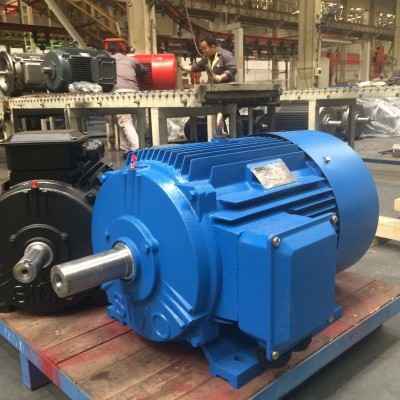

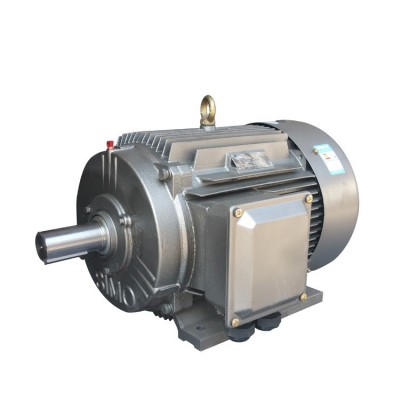

西玛电机YE4-160M-2 11KW IP55能效 V1立式 三相异步电机

西玛电机YE4-160M-2 11KW IP55能效 2级能效三相异步电机 超节能电动机样本以及说明

         YE4系列（IP55）超超率三相异步电动机

YE4 series Ultra High Efficiency Three Phase Asynchronous Motor (IP55)

1.西玛电机YE4-160M-2 11KW IP55能效 2级能效三相异步电机 超节能电动机概述

YE4系列（IP55）超超率三相异步电动机（机座号80～355）（以下简称：电动机）是效率标准IEC 60034-30《单速三相笼型感应电动机效率分级》版本中的IE4效率要求的低压全封闭自扇冷式超超率鼠笼型三相异步电动机，其效率值完全《中小型三相异步电动机能效限定值及能效等级》标准GB18613 中的能效1级要求，为目前效率的标准，效率由测量输入-输出功率的损耗分析法确定（按GB/T 1032-2012中11.3的规定）。

YE4 series (IP55) ultra-high efficiency three-phase asynchronous motor (frame size 80 ~ 355) (hereinafter referred to as: motor) is the three-phase squirrel cage asynchronous motor with efficiency of IEC60034-30 international standard in latest version of IE4 of "single speed three-phase cage induction motors efficiency classification" . Its efficiency value completely reaches the class 1 energy and efficiency standard of GB18613 in “Middle and Small Three-phase Asynchronous Motor Energy and Efficiency Limit and Classification” which is the highest standard. Its efficiency is determined by analysis method of measuring the loss of input and output power, (confirm to regulations of 11.3 in BG/T1032-2012)

该产品可广泛应用于国民经济各个领域，如机床、水泵、风机、压缩机，也可适用于运输、搅拌、印刷、农机、食品等各类动力传输系统。

The motor is widely used in many fields in national economy, such as machine tools, water pump, blower, compressor, as well as to be used in the field of transportation, mixer, printer, agriculture machinery, food etc.

电动机的安装尺寸和功率等级符合IEC标准，与德国DIN42673标准一致， 其外壳防护等级为IP55，冷却方式为IC411，连续工作制（S1）。采用F级绝缘结构，但全系列温升按B级考核；并要求考核负载噪声。

Motor’s mounting dimension and power rating completely confirm to international IEC standards, and are accordance with German DIN42673 standard. The frame protection class is IP55, cooling method is IC411, continuous working duty is S1, class F insulation is adopted, but the temperature rise is assessed according to class B standard, noises on-load is examined according to the requirements as well.

电动机额定电压380V，额定频率50Hz，功率范围0.75～375kW，包括2极、4极和6极电机。功率在3kW及以下者为Y接法，其它功率均为Δ接法。

The rated voltage of the motor is 380V, rated frequency is 50HZ, power range is from 0.75KW to 375KW, including 2P, 4P and 6P. The connection method is Y for motors below 3KW, Δ connection for other motors.

电动机运行地点的海拔不超过1000m；环境空气温度随季节变化，但不超过40℃；环境空气温度为-15℃。当电动机在海拔超过1000m或环境空气温度高于 或低于40℃下使用时，按旋转电机标准GB 755的要求进行修正。

The altitude of the motor should be less than 1000m. The maximum ambient air temperature varies with seasons change, but it should not exceed 40℃, and the minimum ambient air temperature is -15℃. When motor use in the area with altitude over 1000m or the maximum ambient air temperature is higher or lower than 40℃, motor should be modified according to the requirements of the rotary motor standard GB 755.

H80～160机座号为全封闭轴承结构，H180及以上机座号为开启式轴承，前、后轴承带不停机加注装置。电动机带防冷凝排水孔。电动机常规电线盒为顶出线，也可根据用户要求做成右侧出线、左侧出线。接线盒可旋90°和180°，方便用户不同位置出线。

frame H80 ~ 160 motor is with fully enclosed bearing structure, frame H180 and above is with open type bearing, DE and NDE bearing with non-stop filling device. Motor is with anti-condensation drain hole.  Ordinarily the terminal box is on top, it can also be made on right and left according to user requirements. The terminal box can be rotated 90° and 180 °, which is convenient for the user to get off the line in different positions.

2.型号含义安装型式：Mounting version

结构及安装代码：Structure & Mounting code

示意图：Diagram

机座号：frame number

查看更多关于YE5系列节能电机资料，请前往官网：http://www.xiansimo.com/gaoxiaodianji/YE4/

西玛电机YE4-160M-2 11KW IP55能效 2级能效三相异步电机

YE4电机技术参数
